480V Four-Generator Synchronization & Paralleling Switchgear for a Mining Project

Project Overview

The system is designed around four generator incomers, identified in the engineering package as GN-001 through GN-004. It uses a three-phase, 480V configuration without a neutral conductor. The switchgear provides the common-bus interface and outgoing power path to the project transformer.

Switchgear Configuration

Four Generator Incomers and Main Outgoing Circuit

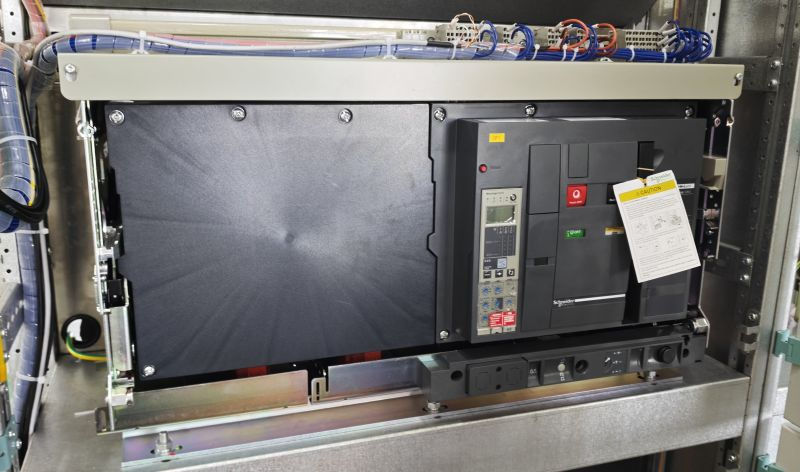

The specified switching arrangement includes four Schneider Electric 1250A air circuit breakers for the generator incomers and one Schneider Electric 5000A air circuit breaker for the main outgoing circuit. The cabinet layout brings the four sources together at a common bus for downstream distribution. For more information on related power distribution assemblies, explore our custom low-voltage switchgear systems.

Generator Control and Monitoring

The control architecture incorporates one Deep Sea Electronics DSE8660 MKII controller and four DSE8003 MKII units. These devices form part of the generator control and switchgear interface specified for the project. Generator-side equipment and site integration remain essential to the complete operating system.

Power and Auxiliary Circuits

The engineering scope includes current-transformer-based measurement, multifunction metering, control power distribution, terminal interfaces and communication wiring. These elements support breaker control, status indication and the wider generator-control interface.

Manufacturing and Electrical Assembly

The assembly process brings together the power compartments, busbar connections, breaker mechanisms, control components and labeled internal wiring. Particular attention is given to equipment identification, separation of power and control functions, and conformity with the approved engineering drawings. For related industrial electrical assembly capabilities, see our motor control center (MCC) panel manufacturing.

Behind the Manufacturing Process

Discover how the switchgear was assembled, including copper busbar installation, circuit breaker integration, control wiring, and factory inspection, in our generator paralleling switchgear manufacturing news.

Factory Inspection and Test Scope

Factory verification is defined separately from full generator commissioning. The documented FAT scope covers component and nameplate checks, physical workmanship, wiring and terminal identification, point-to-point continuity, insulation-resistance checks, control-power checks and air-circuit-breaker open/close/trip functions within the available factory test conditions.

The factory does not have the four project generators connected for operational testing. Accordingly, actual generator synchronization, parallel running, load sharing and full-load performance are not presented as factory-verified results. Those functions require integrated testing and commissioning with the generators and associated site equipment.

Application in Mining Power Systems

For remote or industrial mining facilities using multiple diesel generators, a coordinated paralleling switchgear arrangement provides a central electrical interface between individual generator sources and the downstream power system. The design must align switching equipment, generator controls, metering and the project electrical architecture.

Custom Generator Paralleling Switchgear

Weimiao manufactures project-specific electrical control and switchgear assemblies based on customer-issued specifications and electrical drawings. For generator synchronization and paralleling applications, engineering review should establish the generator interfaces, breaker ratings, control architecture, busbar requirements and FAT/commissioning boundaries before production.

Planning a generator paralleling switchgear project? Send your single-line diagram, generator ratings, control requirements and required delivery scope for an engineering review. You can also submit your project drawings for an engineering review.
